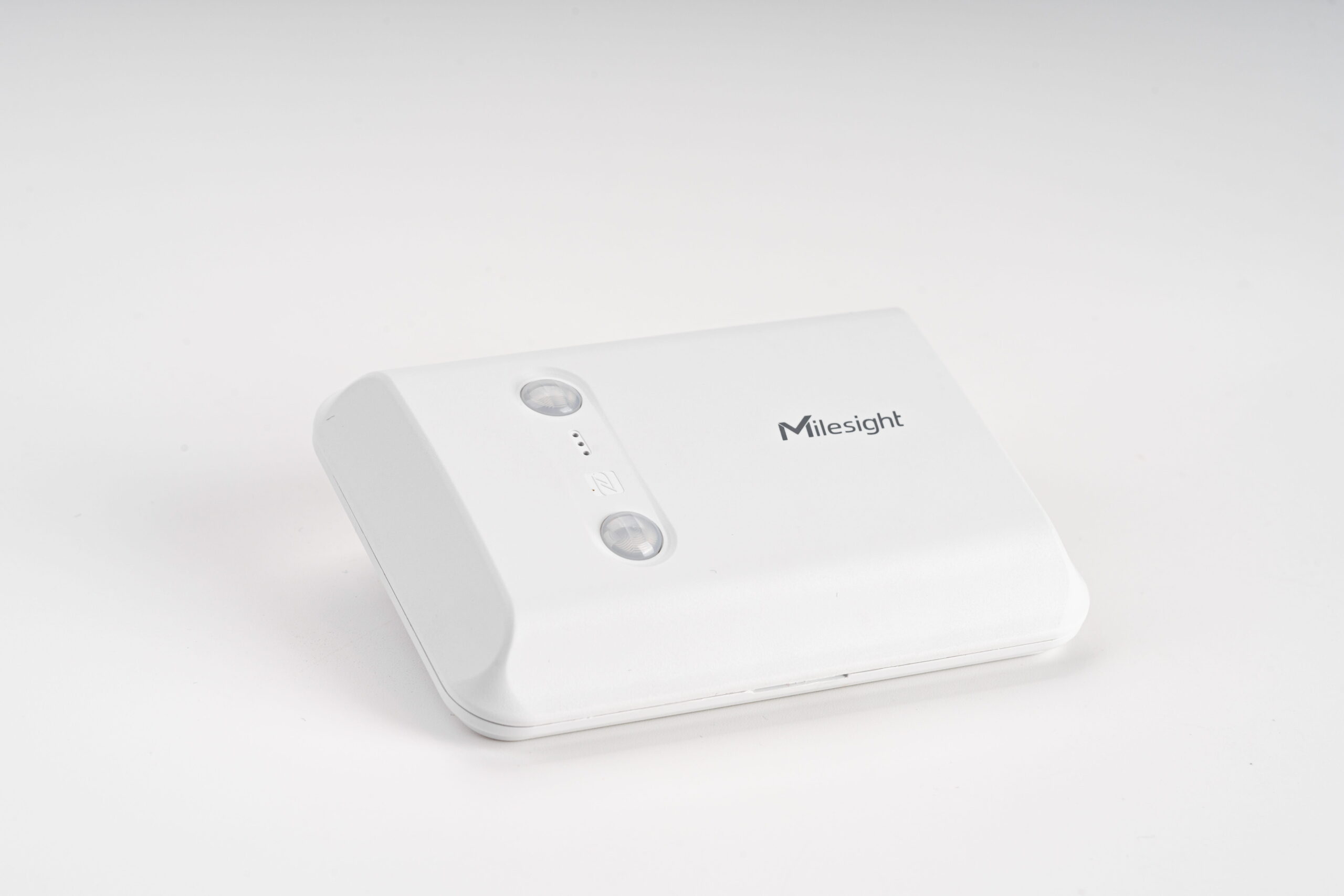

VS350 Passage People Counter
From
£ 106.20 (exc. VAT)
 Features
- Provides a good accuracy rate for bi-directional people counting with dual PIR sensors
- Ultra-low power consumption with up to 4-year battery life without replacement
- 100% anonymity and GDPR-compliant without image capturing, making it free from privacy concerns
- Equipped with a reliable and cost-effective sensor system for counting people through passages
- Functions well with people counting with perfect-fit detection ranges
- Wireless connectivity and its convenient size improve the accessibility and simplicity of deployment
- Built-in temperature sensor, enabling environmental detection
- Stores 1,000 historical records locally and supports retransmission to prevent data loss
- Supports the Milesight D2D protocol to enable ultra-low latency and direct control without gateways
- Equipped with NFC for one-touch configuration and supports card emulation mode
- Functions well with standard LoRaWAN® gateways and network servers
- Compatible with the Milesight IoT Cloud
Available on back-order
The VS350 is an exceptional indoor passage people counter that detects and analyses the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities.
As a Milesight D2D controller, the VS350 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations. With easy configuration and wireless detection, the VS350 facilitates simple deployment and connectivity.
It is compliant with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution. Users can find out the number of people passing through and simply trigger other sensors or devices remotely via a web page or mobile app.
Product Specific Documents:
Datasheet
User Manual
Certificates
Useful Links:
Firmware Versions
Payload Decoders
Download Center
Specifications
| Model: | VS350: | ||
| People Counting: | Technology: | Dual PIR | |
| Installation Height: | Ceiling Mount: ≤ 3.0m Wall Mount: 1.2m~1.3m | ||
| Detection Range: | Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m) Wall Mount: Passage Width < 3.8 m | ||
| Detection Rate: | Single Person: Up to 95% Multiple People: Up to 80% | ||
| Best Operating Temperature: | 15 °C~32 °C | ||
| Bi-directional Counting: | Support | ||
| Temperature: | Range: | -30°C ~ 70°C | |
| Accuracy: | ± 0.5°C | ||
| LoRaWAN Transmission: | Protocol: | LoRaWAN®, Milesight D2D | |
| Frequency: | CN470/IN865/RU864/EU868/US 915/AU915/KR920/AS923-1&2& 3&4 | ||
| Tx Power: | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) | ||
| Sensitivity: | -137dBm | ||
| Mode: | OTAA/ABP Class A | ||
| Others: | Configuration: | NFC Configuration via Mobile App | |
| LED Indicators: | 1 × LED Indicator (Internal) | ||
| Button: | 1 × Reset Button (Internal) | ||
| Advanced Features: | Data Storage, Data Retransmission, Milesight D2D Controller | ||

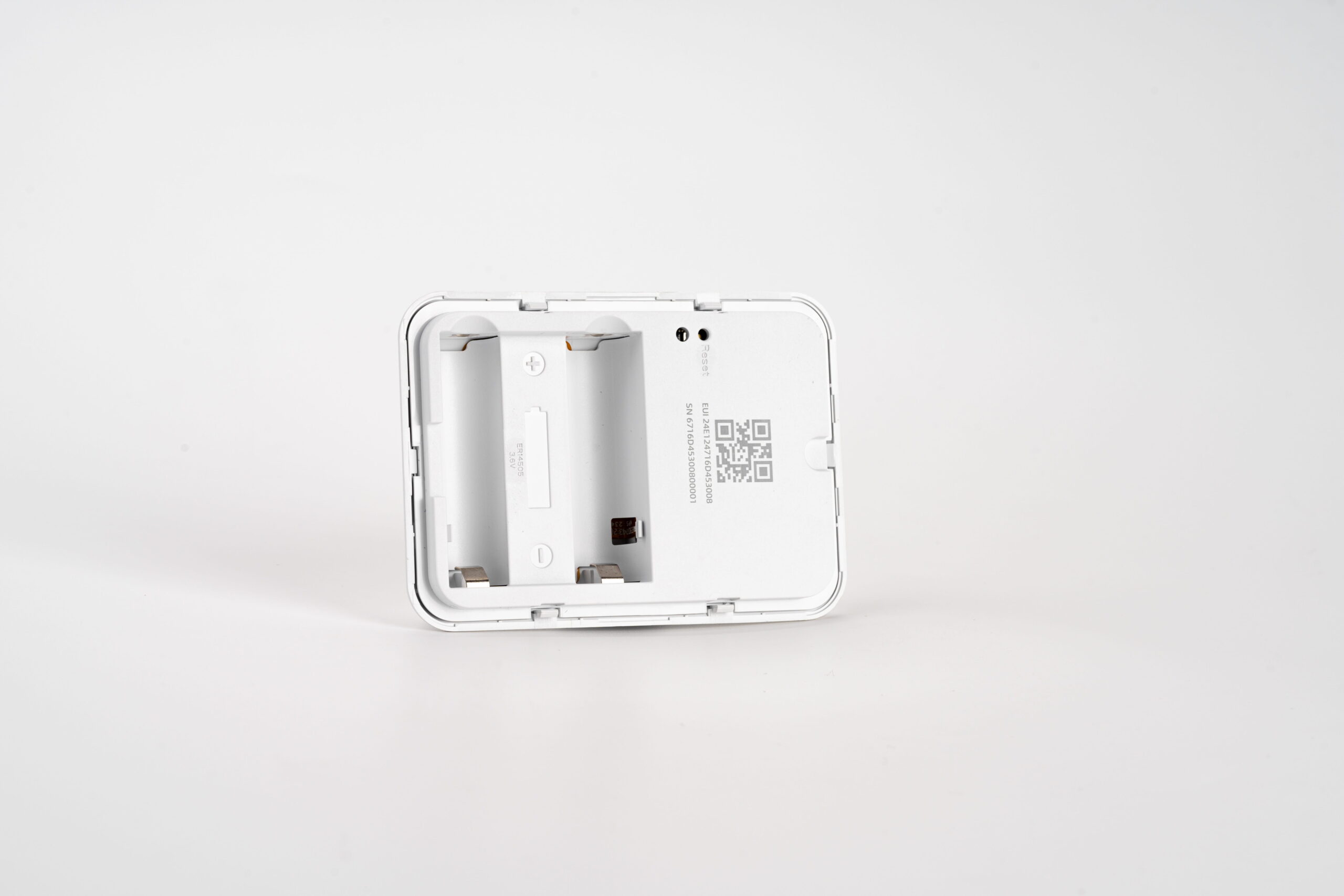

| Physical Characteristics | Power Supply: | 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries | |
| Battery Life | Around 4 Years (10-min Interval, 25°C, 1000 People per Day ) | ||
| Operating Temperature: | -20°C ~ 60°C | ||
| Relative Humidity: | 0 ~ 95% (Non-condensing) | ||
| Ingress Protection: | IP30 | ||
| Dimensions: | Ф100 x 24 mm (Ф3.94 x 0.95 in) | ||
| Material & Colour: | PC (Flame Retardant), White | ||
| Installation: | Ceiling Mount, Wall Mount | ||
| Approvals: | Regulatory: | CE, FCC |
