USB Charger Station Board — PCBA
From
£ 20.00 (exc. VAT)
Features:
- Multi-Device Charging: Offers versatile charging options with 7 USB-A ports and 2 Terminal Block ports, supporting up to 10 A combined for USB-A and 5 A for Terminal Block connections.
- Flexible Power Input Options: Supports both DC JACK (5.0/2.0 pin) and Type-C PD inputs, providing flexibility in various power setups and environments.
- Efficient Power Distribution: Output current adapts based on input power and usage scenario, ensuring optimal and safe charging distribution across connected devices.
- Durable and Reliable PCBA Design: Built with high-quality materials to ensure stability and longevity, ideal for both consumer and professional use cases.
Available on back-order

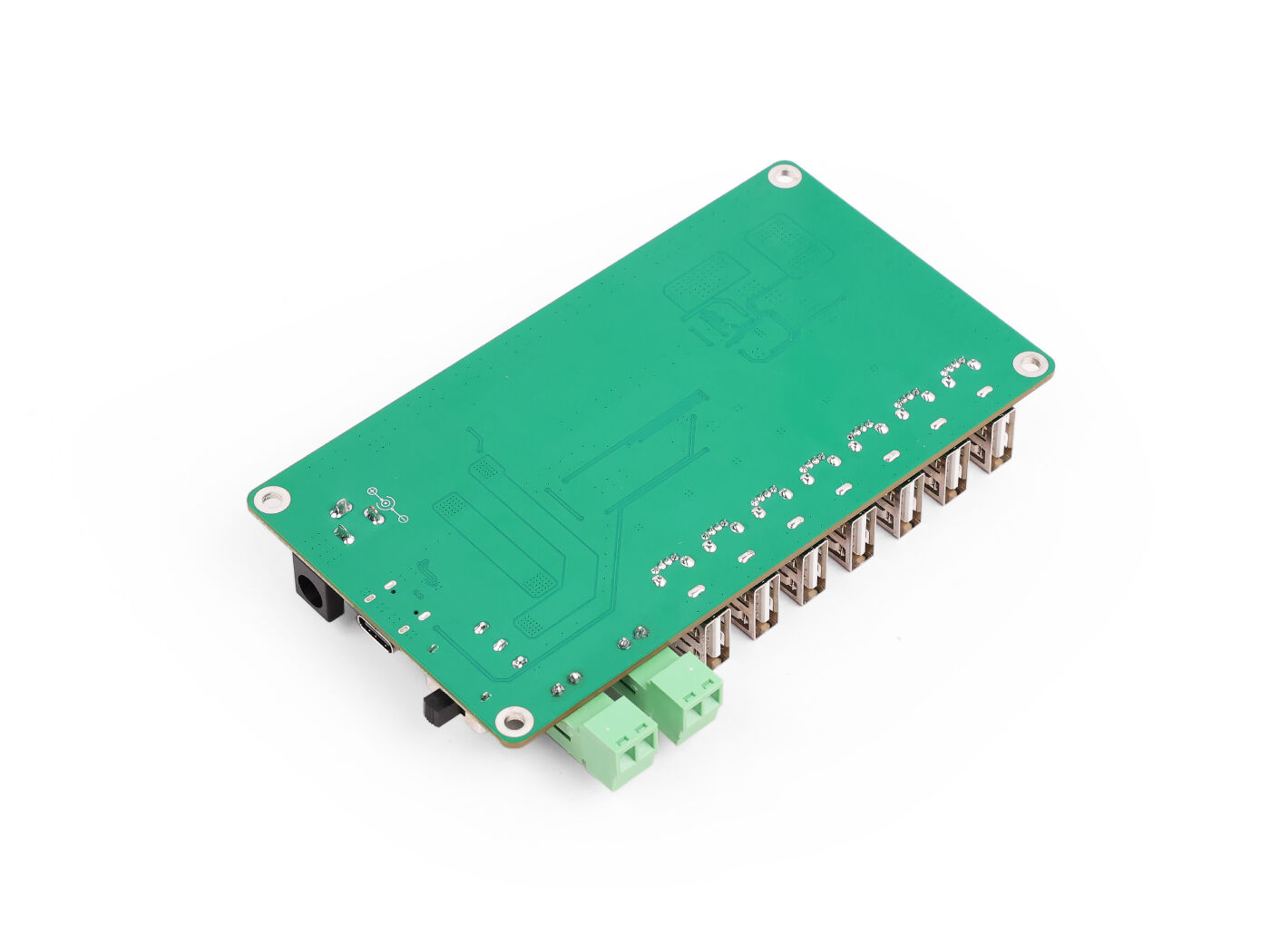

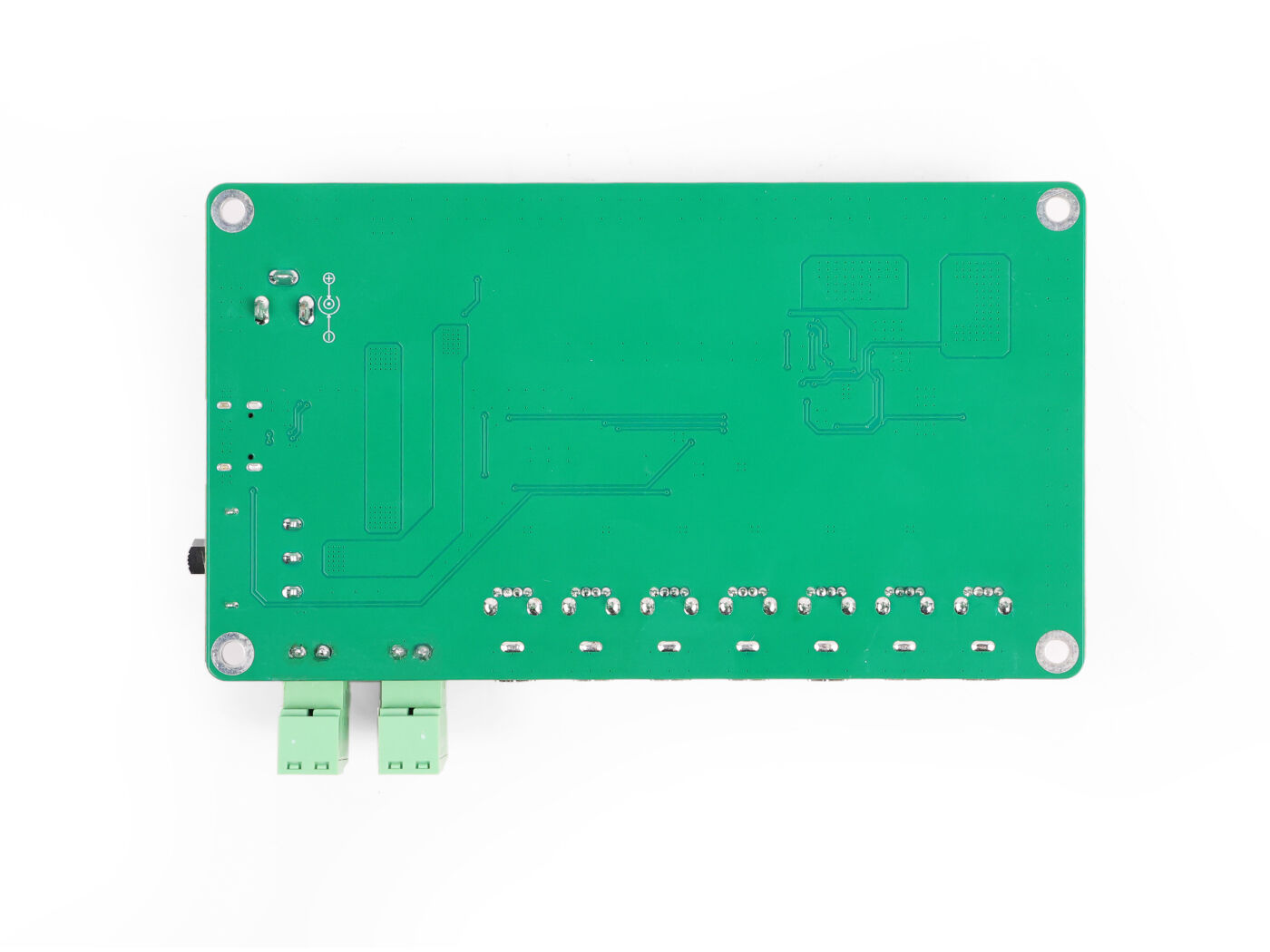

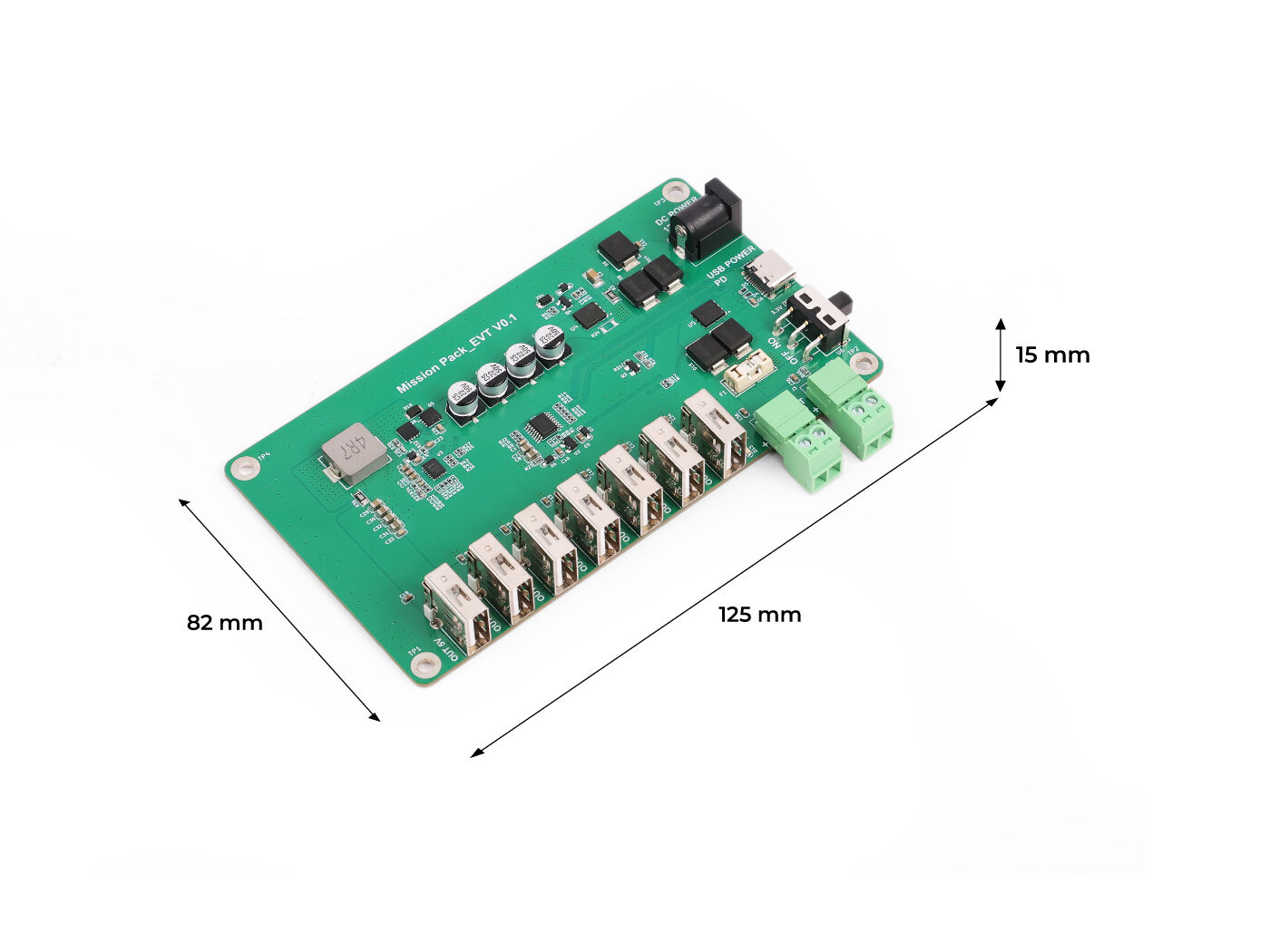

It is a PCBA board designed to provide efficient charging for multiple USB devices. With support for both USB-A and Terminal Block outputs, it is perfectly suited for environments requiring fast, organized charging.
Note:Â
The output current may vary depending on the input current and the combination of output ports used. To prevent overheating or short circuits, ensure proper cable management and adequate ventilation when charging multiple devices simultaneously.
Specifications
Parameter |
Specification |
Input Voltage |
DC 12V / 5A |
Maximum Output Current |
Varies based on configuration: 1) 7 USB-A Ports: Up to 10A total (USB-A only) 2) 2 Terminal Block Ports: Up to 5A total (Terminal Block only) |
Power Input Interface Type |
1) DC JACK 5.0 / 2.0 pin 2) Type-C PD |
Power Output Interface Type |
1) 5V via USB-A 2) 12V via Terminal Block (2-pin, 3.5mm pitch) |
Certification
HS Code |
8504909090 |
US HS Code |
8504904100 |
UPC |
— |
EU HS Code |
8543709099 |
Country of Origin (COO) |
CHINA |
Certification
PBCA |
×1 |
