EM300-ZLD Zone Leakage Detection Sensor
From
£ 115.20 (exc. VAT)
 Features

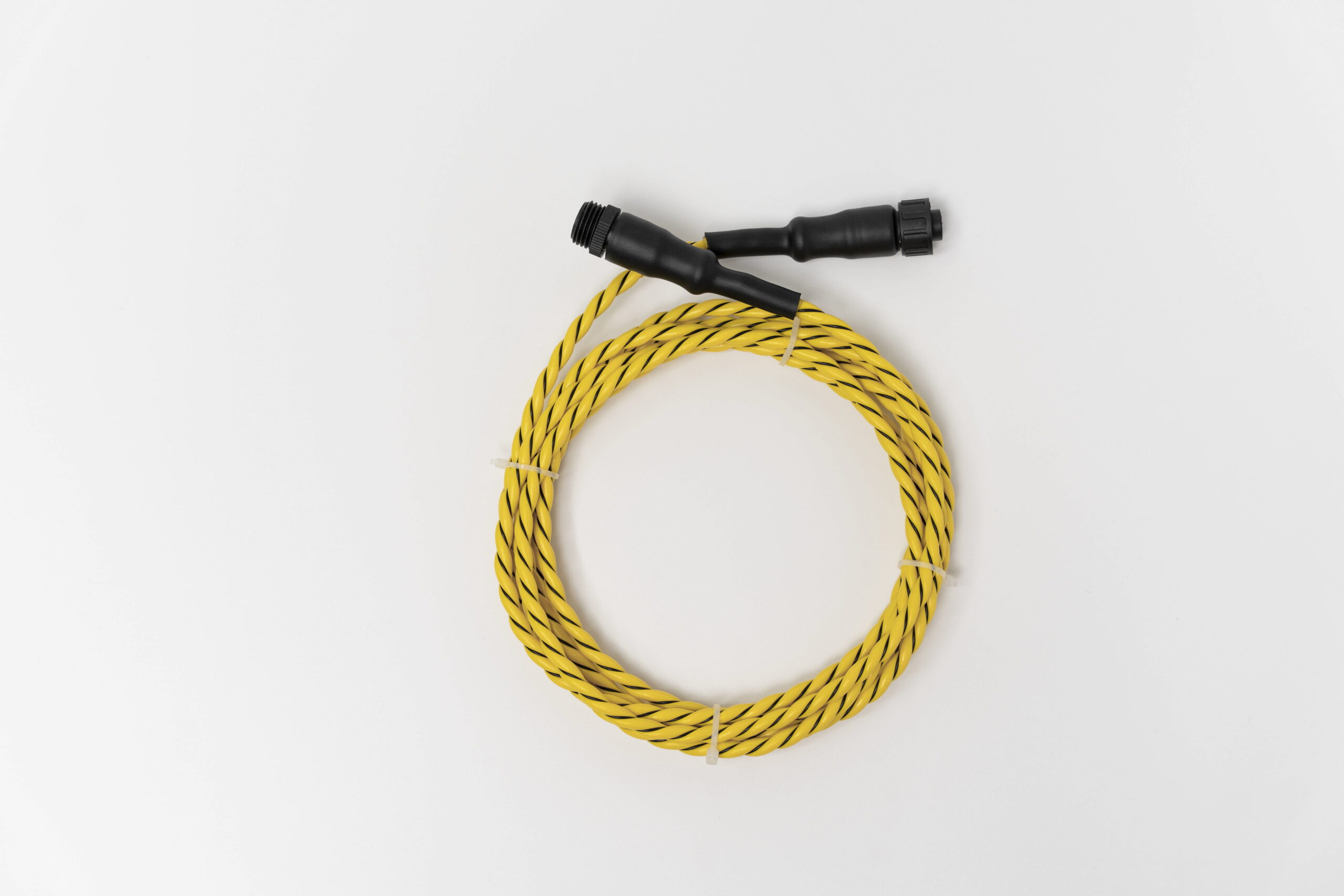

- Detects the presence of liquids via a long cable using the conductive principle
- Embedded with temperature and humidity sensors for environment monitoring
- Ultra-wide transmission distance up to a line of sight of 10 km
- IP67 UV-resistant and waterproof enclosure for applications in harsh environments
- Built-in 4000 mAh replaceable battery and works for more than 5 years without replacement
- Stores 2,800 historical records locally and supports retransmission to prevent data loss
- Supports the Milesight D2D protocol to enable ultra-low latency and direct control without gateways
- Equipped with NFC for simple configuration
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with the Milesight IoT Cloud solution
Available on back-order

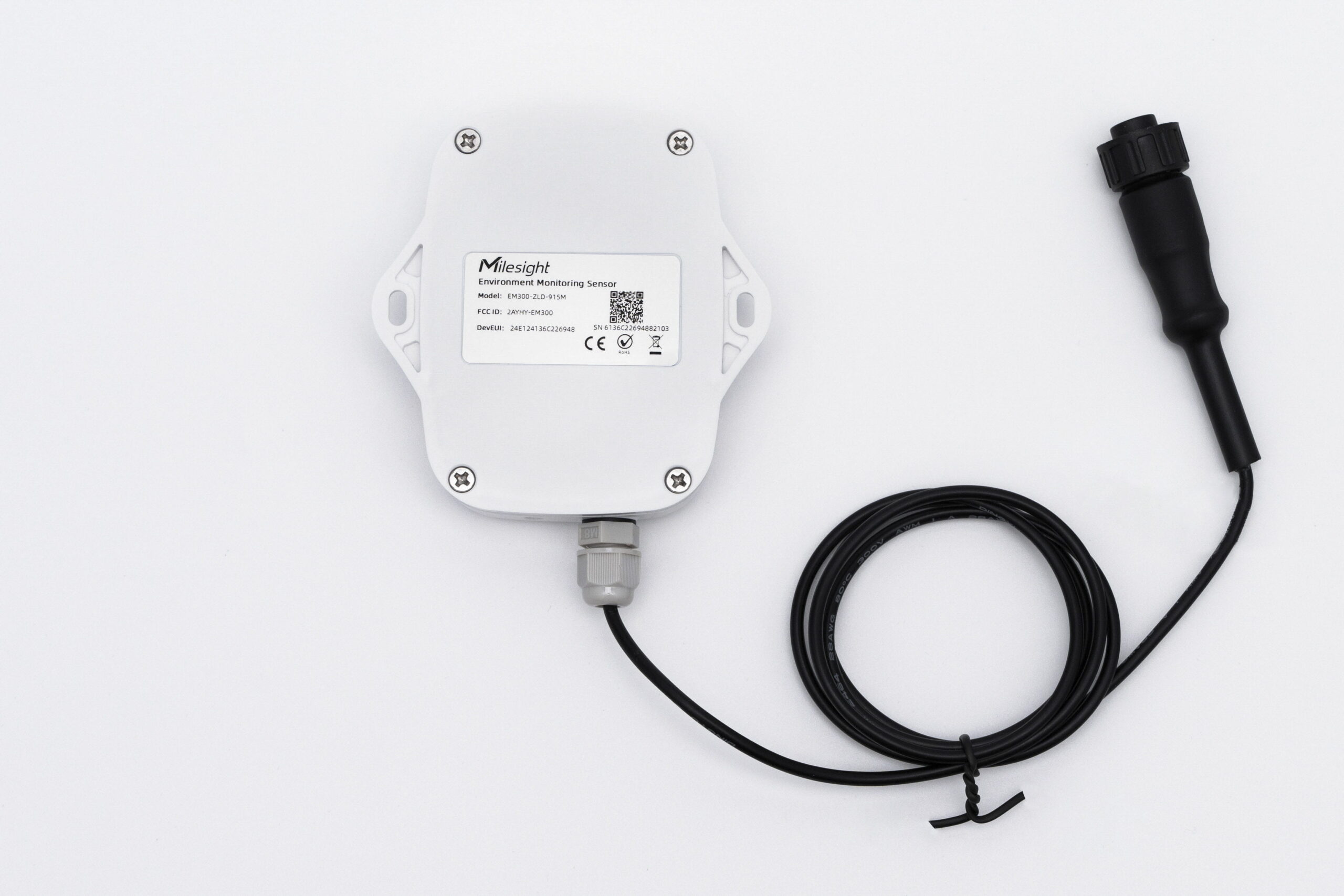

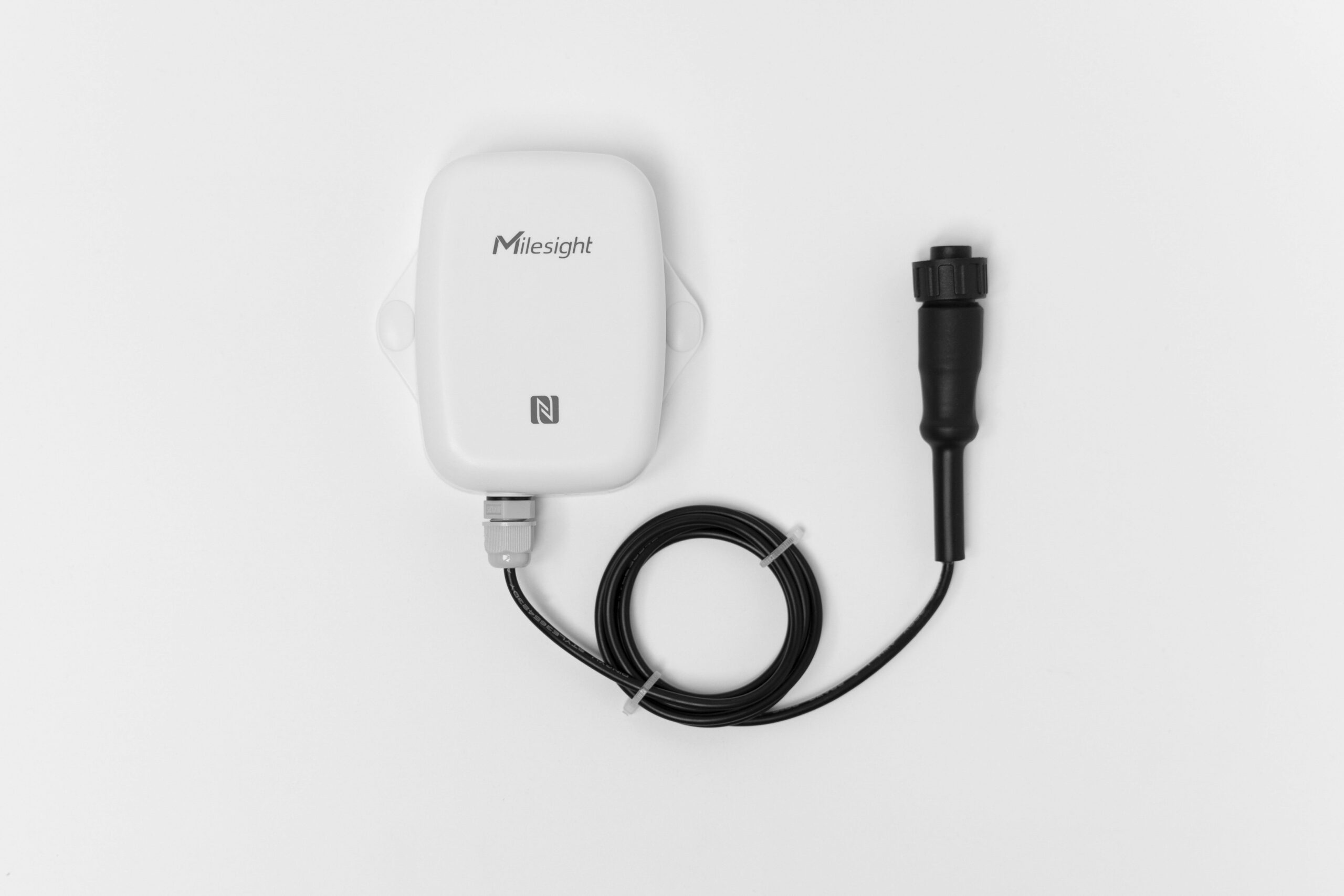

The EM300-ZLD is a compact zone leakage detection sensor for detecting the presence of water (or other liquids) over large areas and for transmitting alarms using LoRaWAN® technology. With this low-power consumption technology, EM300-ZLD can work up to 5 years with a 4000 mAh battery.
In combination with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all the sensor data remotely and visually as well as receive alarms via a mobile app. EM300-ZLD also integrates temperature and humidity sensors, which is very useful for applications such as pipe leakage monitoring, basement flooding, pump failure, etc.
Product Specific Documents:
Datasheet
User Manual
Certificates
Useful Links:
Firmware Versions
Payload Decoders
Download Center
Specifications
| Model: | EM300-ZLD: | ||
| Wireless Transmission: | Protocol: | LoRaWAN®, Milesight D2D | |
| Frequency: | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 | ||
| Tx Power: | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) | ||
| Sensitivity: | -137 dBm @300bps | ||
| Mode: | OTAA/ABP Class A | ||
| Leakage Detection: | Liquid Type: | Conducting liquid | |
| Trigger Condition: | When liquid level reaches 5mm | ||
| Cable Length: | 3m (Customizable) | ||
| Temperature: | Range: | -30°C to + 70°C | |
| Accuracy: | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) | ||
| Resolution: | 0.1°C | ||
| Humidity: | Range: | 0% to 100% RH | |
| Accuracy: | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) | ||
| Resolution: | 0.5% RH | ||
| Operation: | Power On & Off: | NFC, Power Button (Internal) | |
| Configuration: | NFC Configuration via Mobile App | ||
| Advanced Features: | Milesight D2D Controller, Data Storage, Data Retransmission | ||
| Physical Characteristics: | Power Supply: | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries) | |
| Battery Life: | 10 years (10 min interval + 24 triggers per day) | ||
| Operating Temperature: | -30°C ~ +70°C | ||
| Relative Humidity: | 0% to 100% (non-condensing) | ||
| Ingress Protection: | IP67 | ||
| Dimensions: | 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) | ||
| Installation: | Wall Mounting | ||
| Approvals: | Regulatory: | CE, FCC | |
| Environmental: | RoHS |
