Wio Tracker L1 Lite
From
£ 30.28 (exc. VAT)
Features:
- Pre-flashed with Meshtastic Firmware: Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
- Triple Power Supply Options: Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.
- Flexible Display Support: Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.
- High Expandability: Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Available on back-order

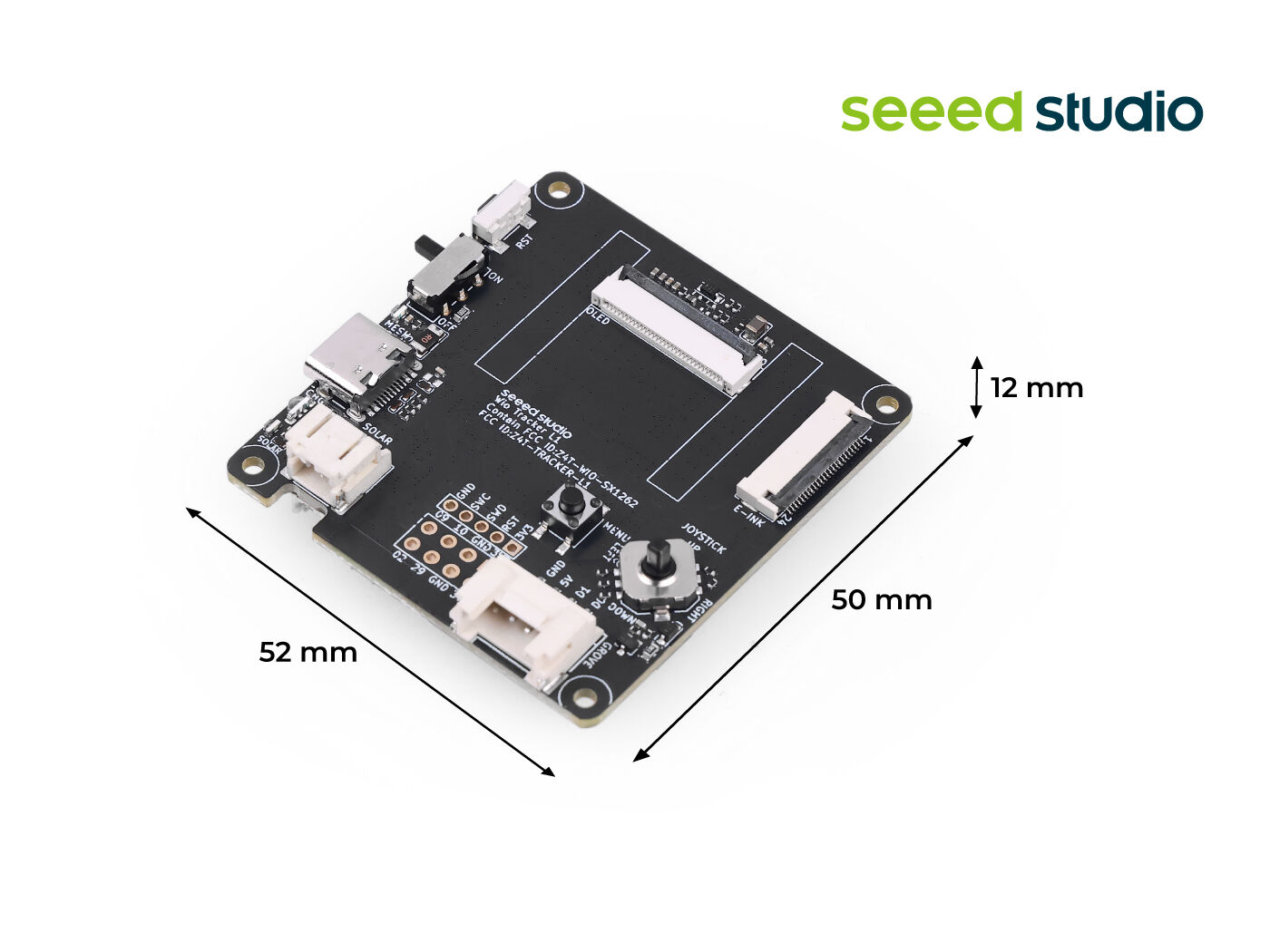

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.The L1 Lite version is a compact and minimalist development board — perfect for embedded integration and advanced customization.
Note

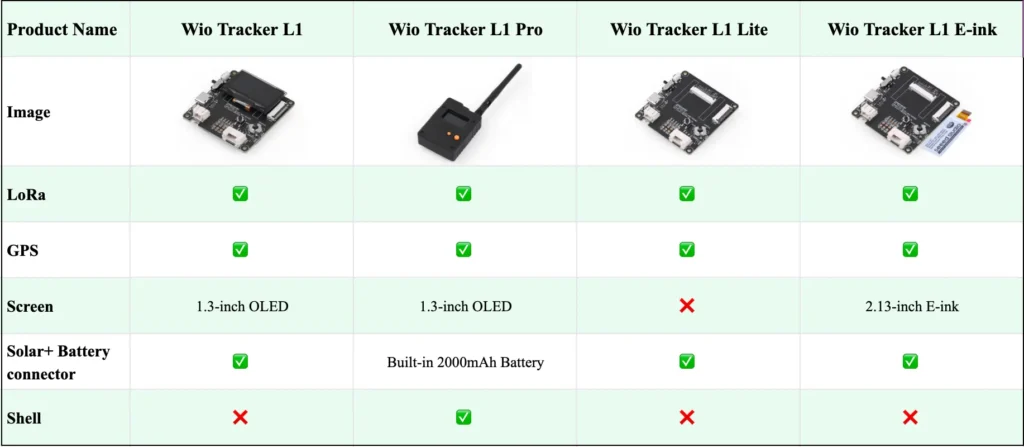

The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.
Specifications
Processor |
Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
On-chip Memory |
1 MB Flash and 256 kB RAM |
Wireless |
LoRa: Based on Wio-SX1262, supports 862–930 MHz Bluetooth: 5.0 |
GPS |
L76K (GPS, BeiDou, GLONASS, QZSS) |
Interface |
Screen Interfaces:
Grove: UART / I²C / GPIO Plated Through Hole (PTH): UART / I²C / GPIO / Analog Soldering Pads: Reserved for SWD |
Power |
Type-C: 5V — 1A Solar Energy Interface: 5V — 1A Battery Interface: 3.7V — 1A |
Certification |
FCC, CE, RoHS |

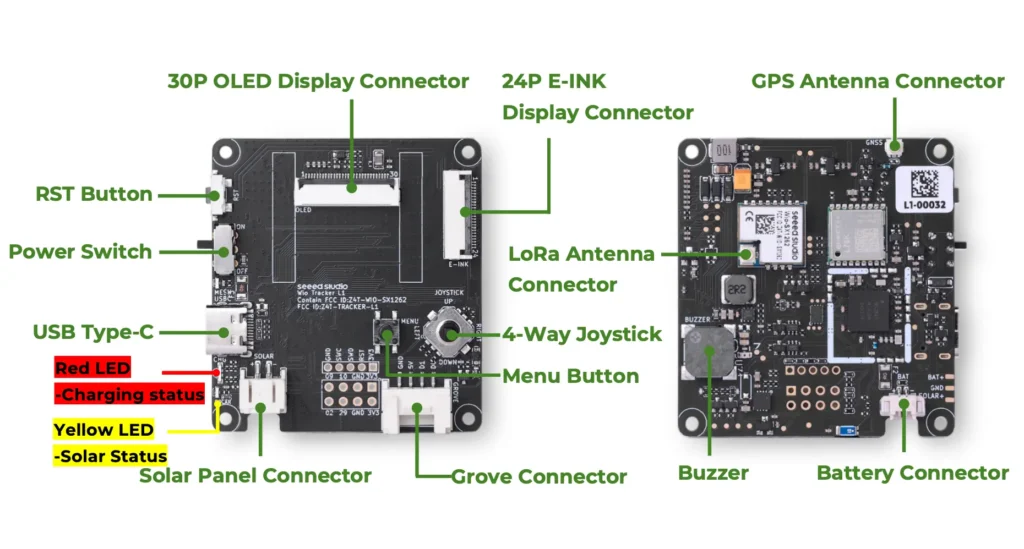

Hardware overview

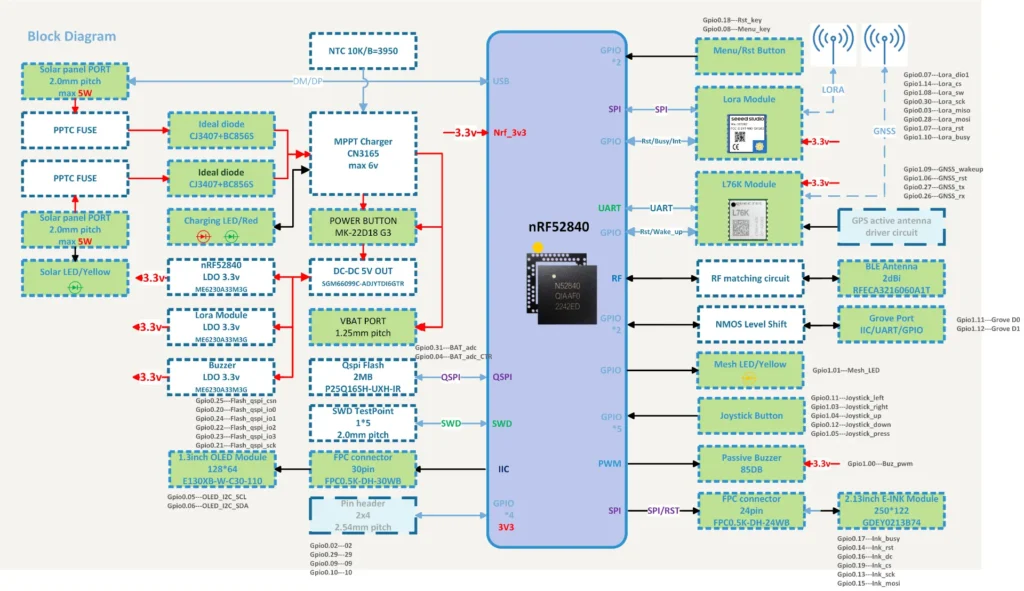

Diagram
Application
ECCN/HTS
HS Code |
8526919090 |
US HS Code |
8526910040 |
UPC |
— |
EU HS Code |
8517180000 |
Country of Origin (COO) |
CHINA |

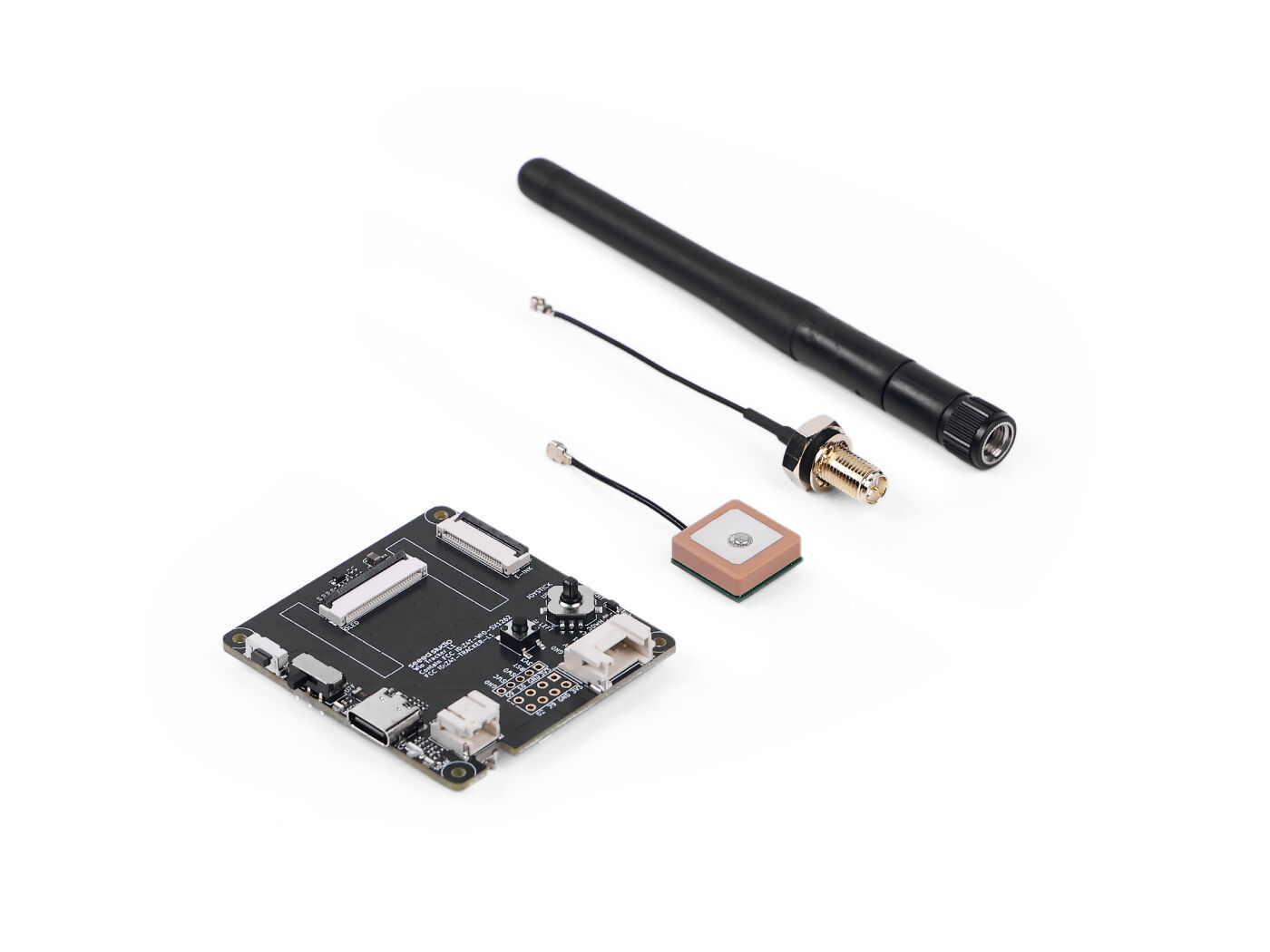

Part List
Item |
Quantity |
Wio Tracker L1 Board |
Ă—1 |
2.13 inch E-Ink Display |
Ă—1 |
60 mm RF Cable (RP-SMA Female to IPEX) |
Ă—1 |
LoRa Antenna |
Ă—1 |
GPS Antenna |
Ă—1 |
24P 0.5 mm FPC Connector |
Ă—1 |
24P FFC Cable |
Ă—1 |
