TC01/TC11-LB LoRaWAN Thermocouple Converter
From
£ 69.99 (exc. VAT)
Features:
- LoRaWAN 1.0.3 Class A
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- K Type Thermocouple (-50 ~ 200°C) (For model TC11)
- 2 wire to 3rd party Thermocouple (For model TC01)
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery
The Dragino TC01/TC11-LB is a LoRaWAN Thermocouple Converter for Internet of Things solutions. It is used to measure the industrial environment temperature , and then upload this data to an IoT server via the LoRaWAN network.

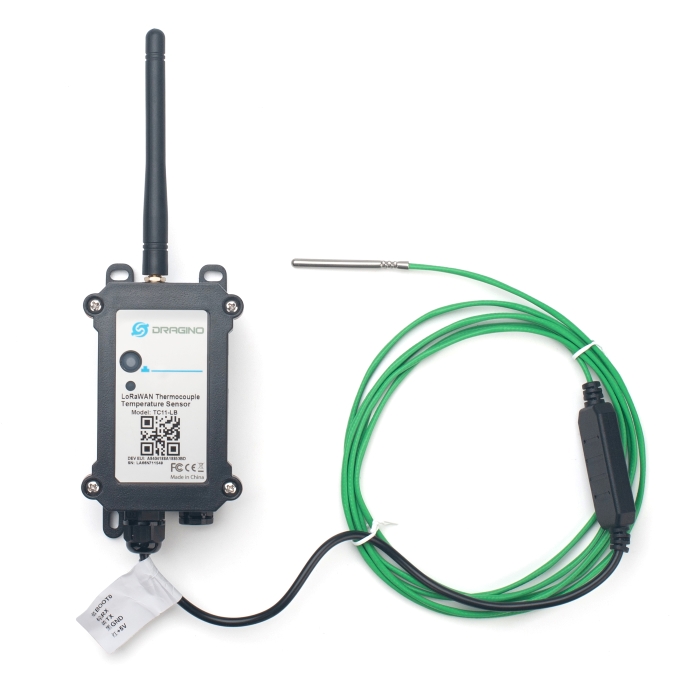

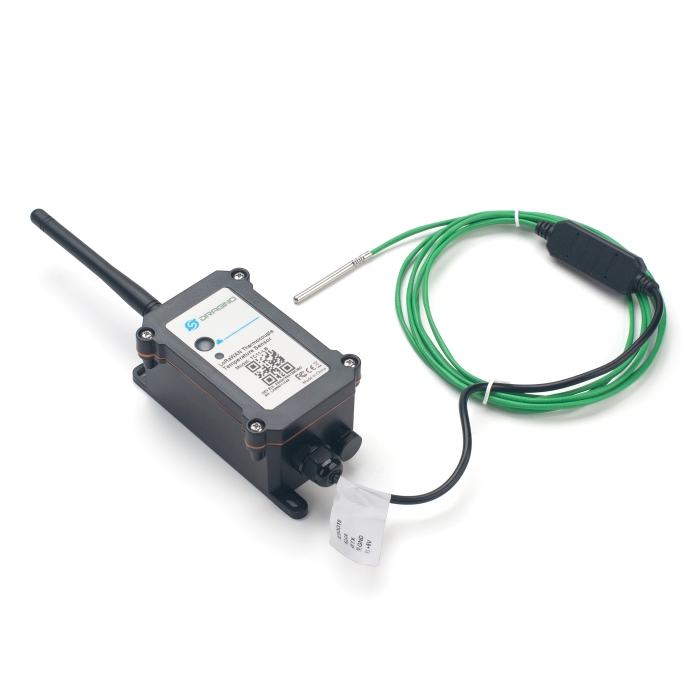

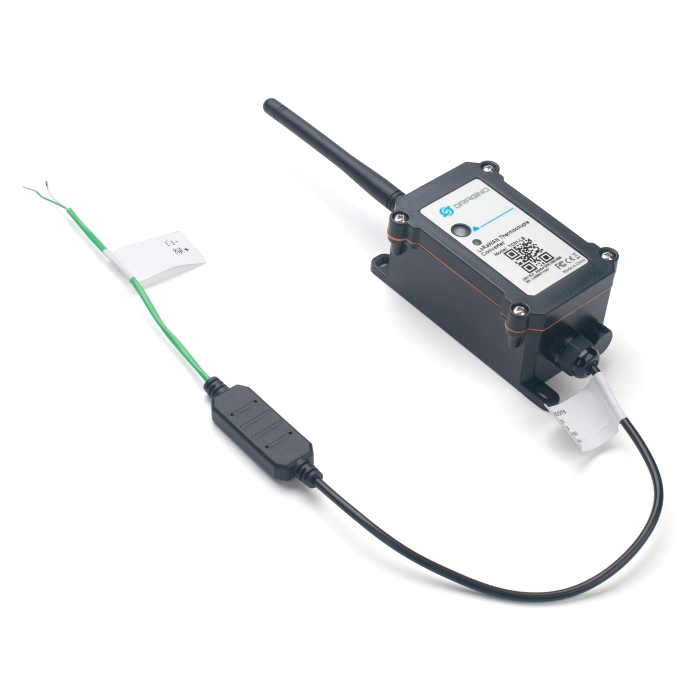

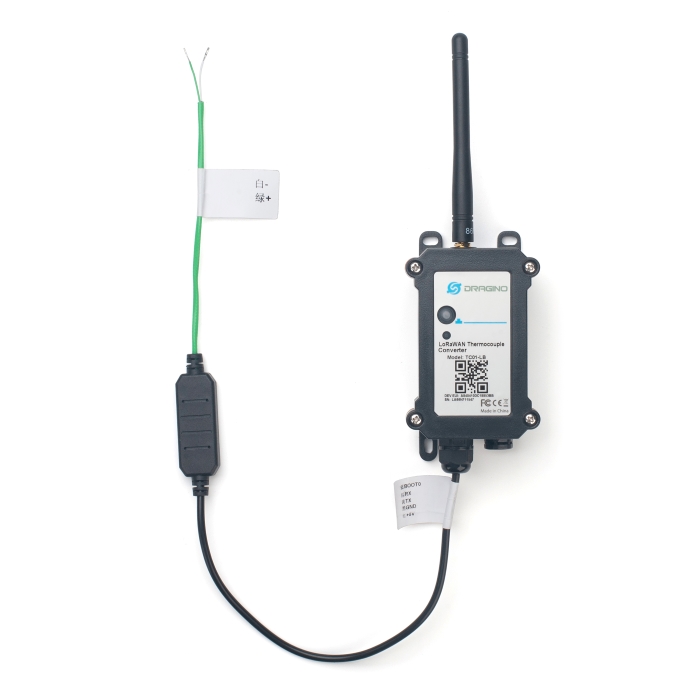

The TC11-LB uses a K-Type thermocouple that can measure between -50°C ~ 200°C. The TC01-LB is equipped with 2 open wires so users can connect a 3rd party K, J, N, R,S T, E, or B type thermocouple.
The TC01/TC11-LB supports the temperature alarm feature. Users can set temperature alarms for instant notification. The TC01/TC11-LB also supports the Datalog feature, it will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no data is missed.
The TC01/TC11-LB supports BLE configuration and wireless OTA updates which makes the device easy to use.
The TC01/TC11-LB is powered by an 8500mAh Li-SOCI2 battery, designed for long-term use (up to several years).
Each TC01/TC11-LB is pre-loaded with a set of unique keys for LoRaWAN registration. Users can register these keys to their local LoRaWAN server and it will auto connect after powering on.
Product Specific Documents:
Datasheet
User Manual
Extended Product Information
Other Helpful Documents:
Dragino Wiki
Useful Links
Specifications
| Common DC Characteristics: | Supply Voltage: Built-in Battery , 2.5v ~ 3.6v |
| Operating Temperature: -40 ~ 85°C | |
| LoRa Spec: | Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz |
| Max +22 dBm constant RF output vs. | |
| RX sensitivity: down to -139 dBm. | |
| Excellent blocking immunity | |
| Battery: | Li/SOCI2 un-chargeable battery |
| Capacity: 8500mAh | |
| Self-Discharge: <1% / Year @ 25°C | |
| Max continuously current: 130mA | |
| Max boost current: 2A, 1 second | |
| Power Consumption: | Sleep Mode: 5uA @ 3.3v |
| LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm |
