SDI-12-NB/NS SDI-12 to NB-IoT Converter
From
£ 69.99 (exc. VAT)
Features:
- NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
- Ultra-low power consumption
- Controllable 3.3v, 5v and 12v output to power external sensor
- SDI-12 Protocol to connect to SDI-12 Sensor
- Multiple Sampling and one uplink
- Supports Bluetooth v5.1 remote configuration and update firmware
- Uplinks on periodically
- Downlink to change configuration
- 8500mAh Li/SOCl2 Battery(For SDI-12-NB)

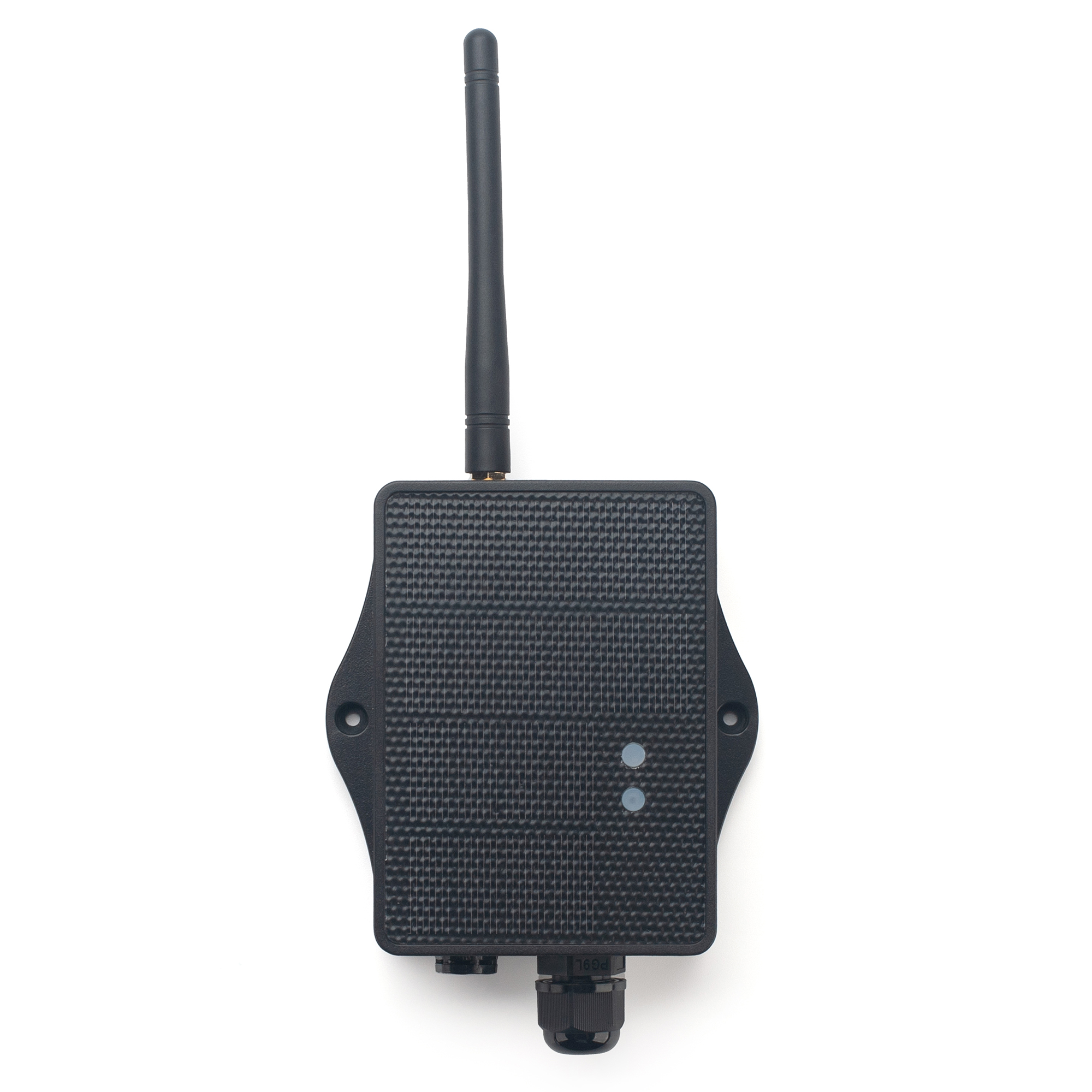

- Solar panel + 3000mAh Li-ion battery(For SDI-12-NS)
- Uplink via MQTT, MQTTs, TCP, or UDP
- Nano SIM card slot for NB-IoT SIM

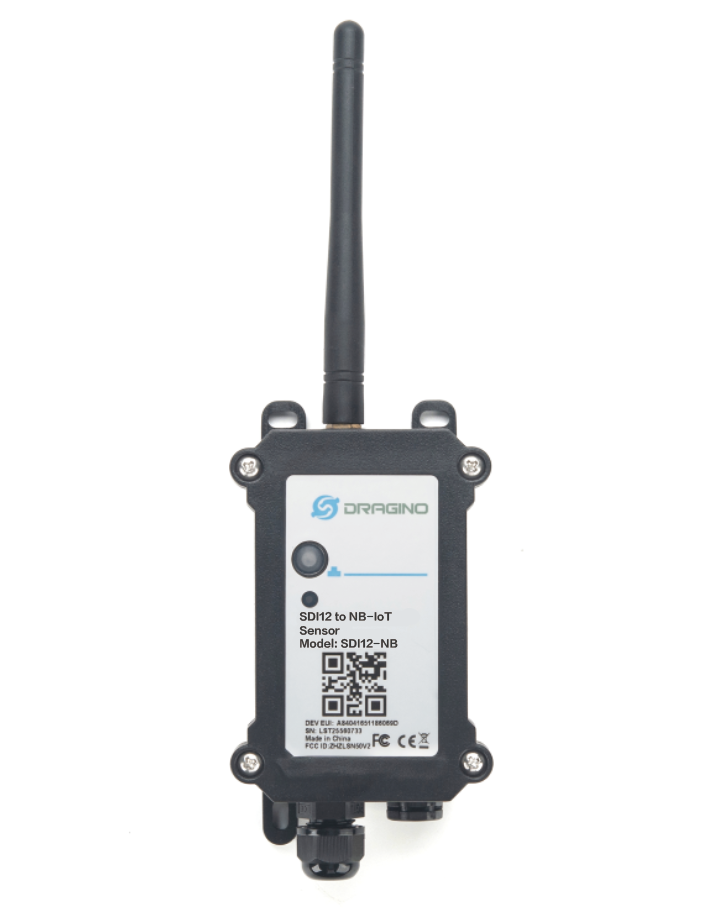

The Dragino SDI-12-NB/NS is an SDI-12 to NB-IoT Converter designed for Smart Agriculture solutions.
SDI-12 (Serial Digital Interface at 1200 baud) is an asynchronous serial communications protocol for intelligent sensors that monitor environmental data. The SDI-12 protocol is widely used in both Agricultural sensors and Weather Station sensors.

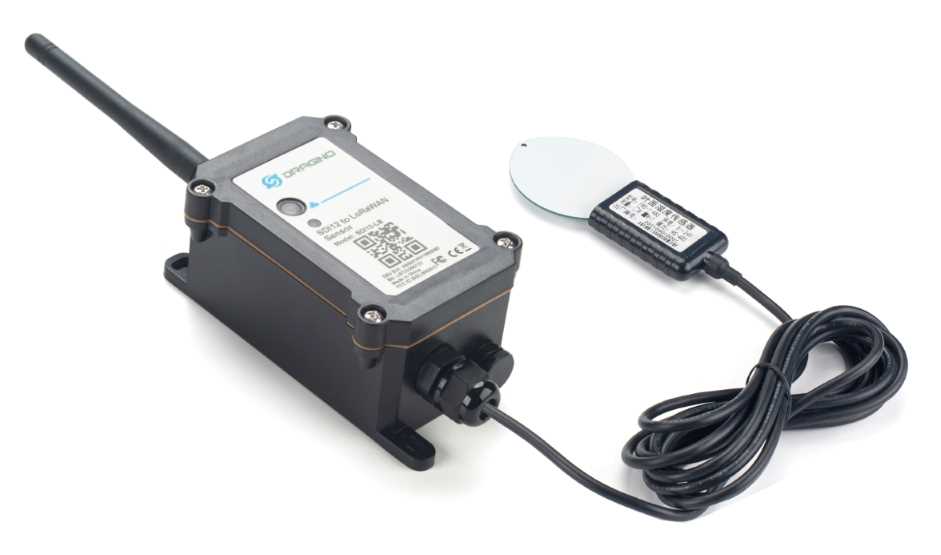

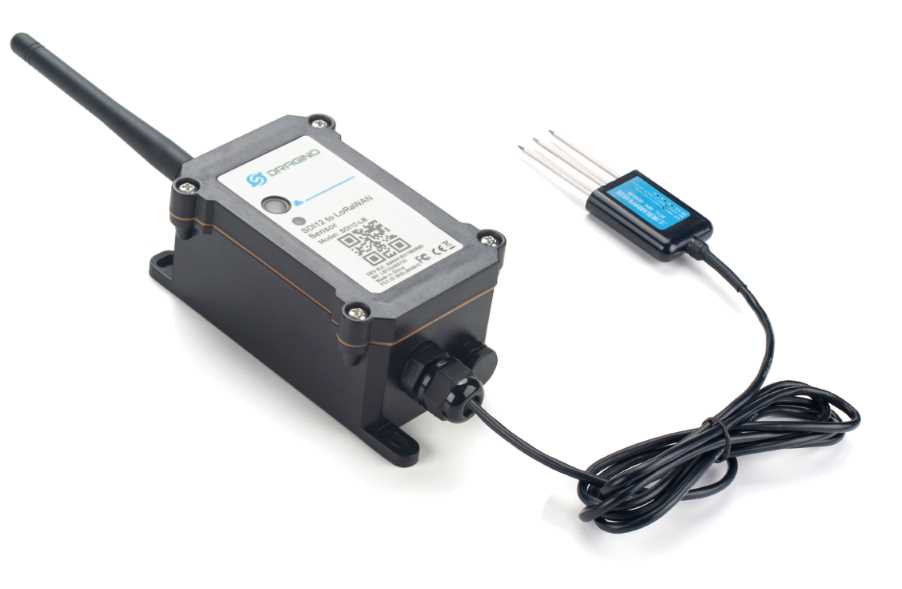

The SDI-12-NB/NS has an SDI-12 interface and supports 12v output to power external SDI-12 sensors. It can receive the environmental data from the SDI-12 sensor and send out the data via the NB-IoT wireless protocol.
The SDI-12-NB/NS supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirements, and supports uplinks to various IoT Servers.
The SDI-12-NB/NS supports BLE configuration and OTA updates which makes the device easy to use.
The SDI-12-NB/NS is powered by an 8500mAh Li-SOCI2 battery or solar panel + Li-ion battery designed for long-term us.
The SDI-12-NB/NS has an optional built-in SIM card and default IoT server connection version. Which makes configuration more simple.
