LHT65N-NIS LoRaWAN NIST Traceable Temperature Sensor
From
£ 209.99 (exc. VAT)
Features:
- LoRaWAN Class A protocol
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
- AT Commands to change parameters
- Remote configure parameters via LoRaWAN Downlink
- Firmware upgradable via program port
- Built-in 2400mAh battery used for up to 10 year*
- Built-in Temperature & Humidity sensor
- Optional External Sensors
- Tri-colour LED to indicate status
- Datalog feature
- Wall mountable Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long range Irrigation Systems
Available on back-order

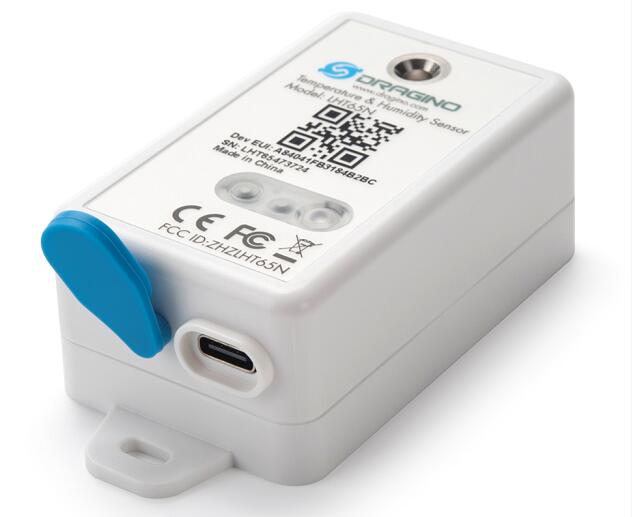

The Dragino LHT65N/S-NIS is a Traceable Temperature Sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and has an external NIST traceable probe which has a unique certificate from the NIST Certificate Lab.
The LHT65N/S-NIS allows users to send data over extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as medicine storage, hospital application, cold chain, food safety and so on…
The LHT65N/S-NIS supports the Datalog feature. It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure they receive every sensor reading.
The LHT65N/S-NIS has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.
The LHT65N/S-NIS is fully compatible with LoRaWAN v1.0.3 Class A protocol, and can be used with any standard LoRaWAN gateway.
*The actual battery life depends on how often to send data, please see battery analysis chapter.
Product Specific Documents:
Datasheet
User Manual
Firmware
Certificate
Decoder
Extended Product Information
Other Helpful Documents:
Dragino Wiki
Specifications
| Built-in Temperature Sensor: | -Resolution: 0.01 °C |
| -Accuracy Tolerance : Typ ±0.3 °C | |
| -Long Term Drift: < 0.02 °C/yr | |
| -Operating Range: -40 ~ 80 °C | |
| Built-in Humidity Sensor: | -Resolution: 0.04 %RH |
| -Accuracy Tolerance : Typ ±3 %RH | |
| -Long Term Drift: < 0.02 °C/yr | |
| -Operating Range: 0 ~ 96 %RH | |
| External Sensor : | -Unique NIST Certificate |
| -Traceable probe |
